SPX-350X2
by STINGER

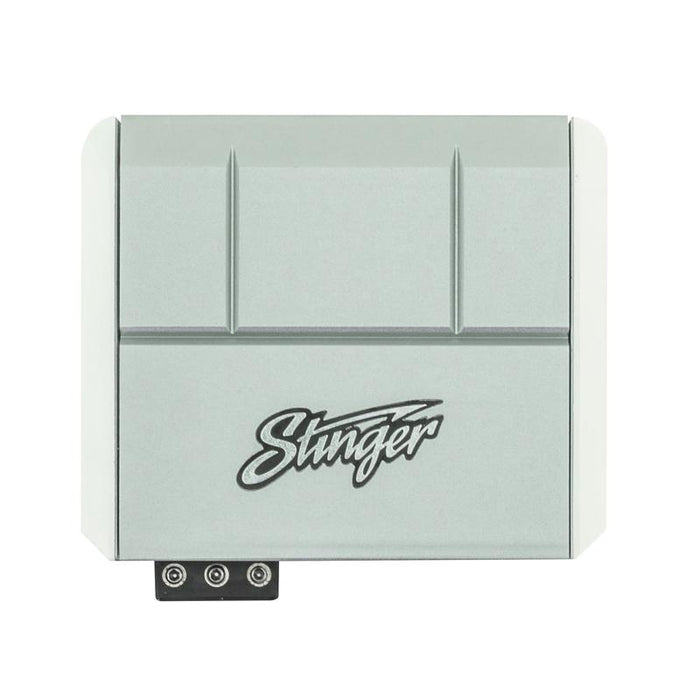

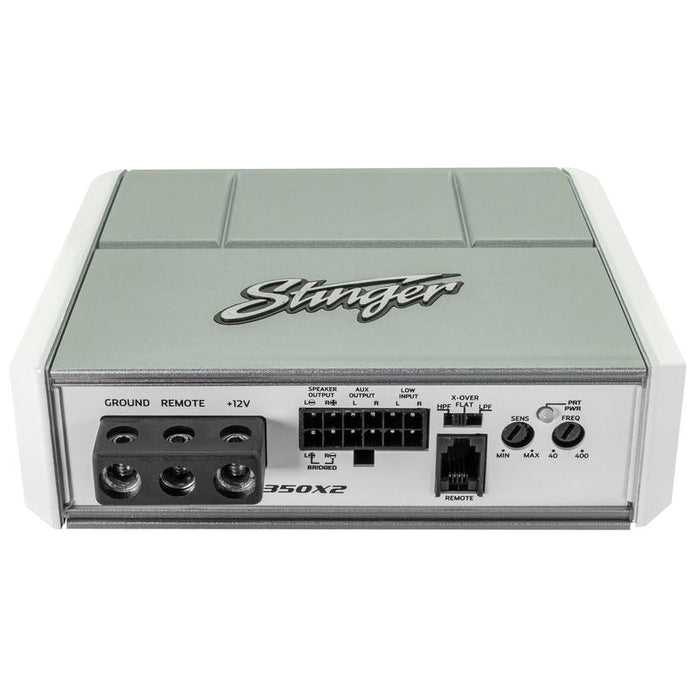

STINGER (SPX350X2) MICRO 2 CHANNEL 350 WATT POWERSPORTS AMPLIFIER
Compact weather-resistant amplifier delivers massive power with minimal size, extreme durability built to withstand the harsh environments you'll meet on the trail, dunes, or wherever your off-road adventure takes you.
FEATURES:
- Target Voltage: 8-16 Volts
- 350x1 at 4 Ohm 175x2 at 2 Ohm 125x2 at 4 Ohm

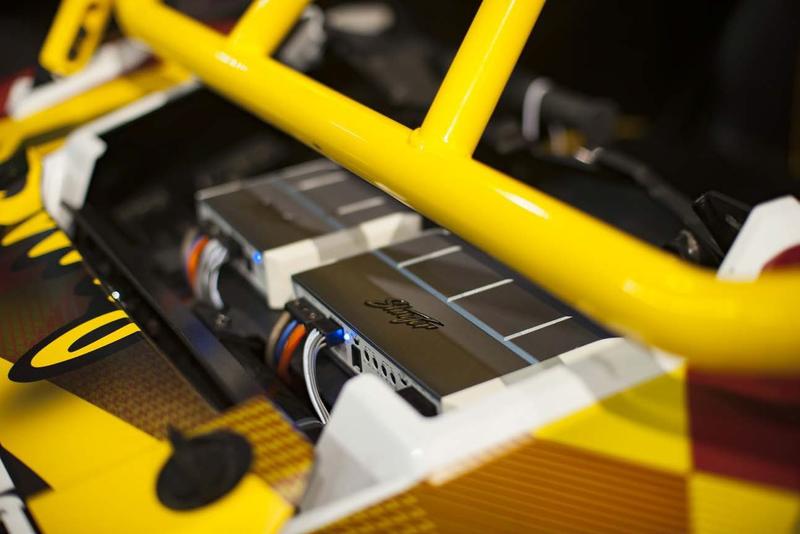

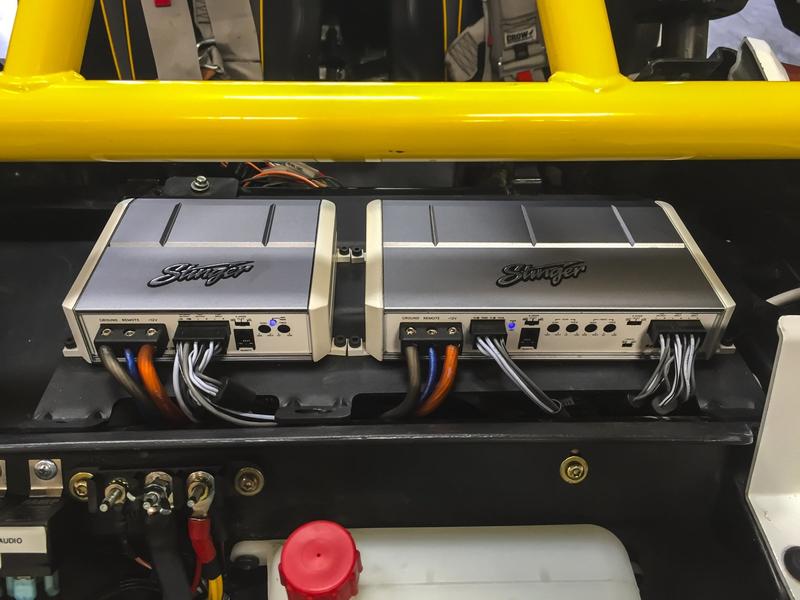

- Perfect for motorcycles, off-road, marine and mobile applications
- Small footprint with a low profile
- IPX-4/5 weather-resistant design
- Full range Class D
- Unregulated power supply

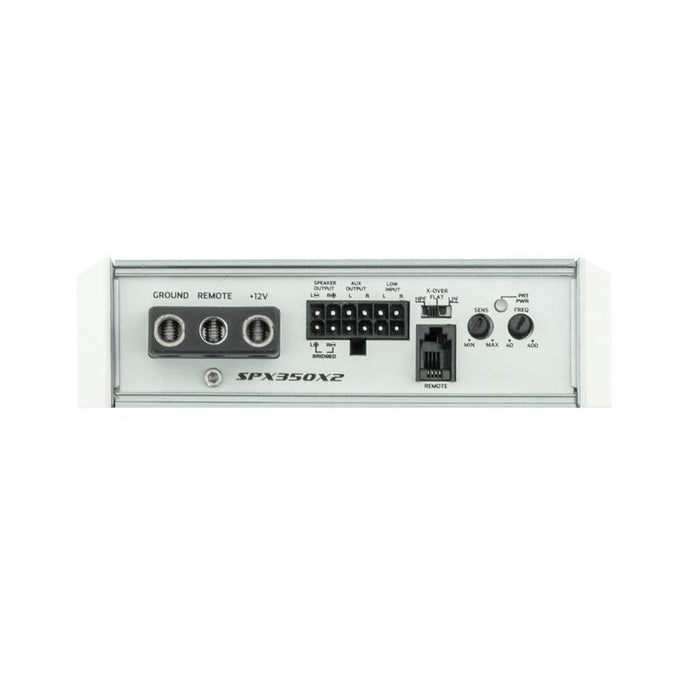

- Aux RCA output (to link to additional amplifiers)
- Diecast endcaps with removable mounting feet
- Volume control with mute function
- Stream Bluetooth directly to the amplifier with a ISBT23 Weather Proof BT receiver with 4v output
* RMS Power (14.4Vdc ≤1% THD):
* 125 x 2 @ 4 ohm Stereo
* 175 x 2 @ 2 ohm Stereo
* 350 x 1 @ 4 ohm Bridged
* Lowest Recommended Load: 4 ohm Bridged or 2 ohm Stereo
SPECIFICATIONS:
- Frequency Response: ± 1dB from 20Hz to 20kHz
- Signal to Noise Ratio: >110dB
- High and Low Pass Crossovers: 12dB per Octave
- Low Pass Crossover Range: 40Hz to 400Hz
- High Pass Crossover Range: 40Hz to 400Hz
- Input Range: 200 millivolts to 12 volts
- Typical Efficiency: 80%
- Damping Factor: Greater than 200
- Recommended Fuse Size: 30 amp
- Power/Ground Wire Size: 8 Gauge
DIMENSIONS:
- Dimensions : 141mm L x 120mm W x 41mm
- H 5.56” L x 4.73” W x 1.6” H
