OMR65PR
by OKUR

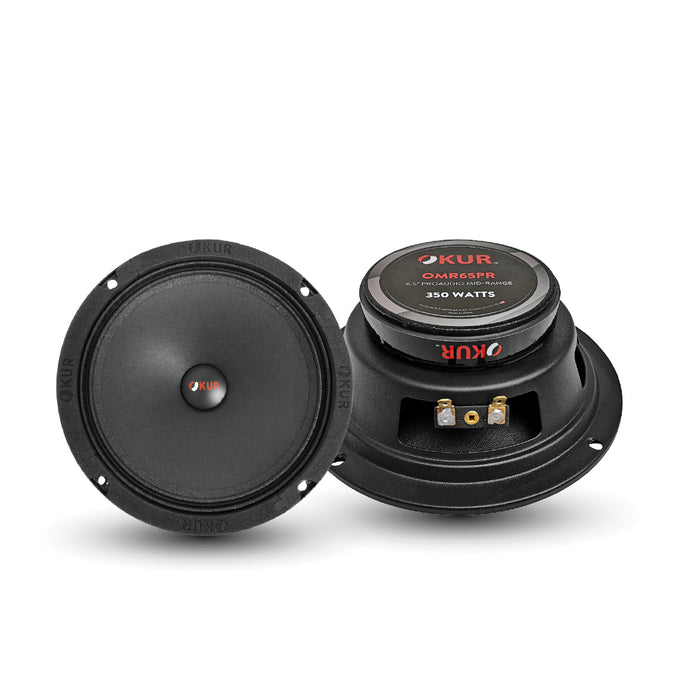

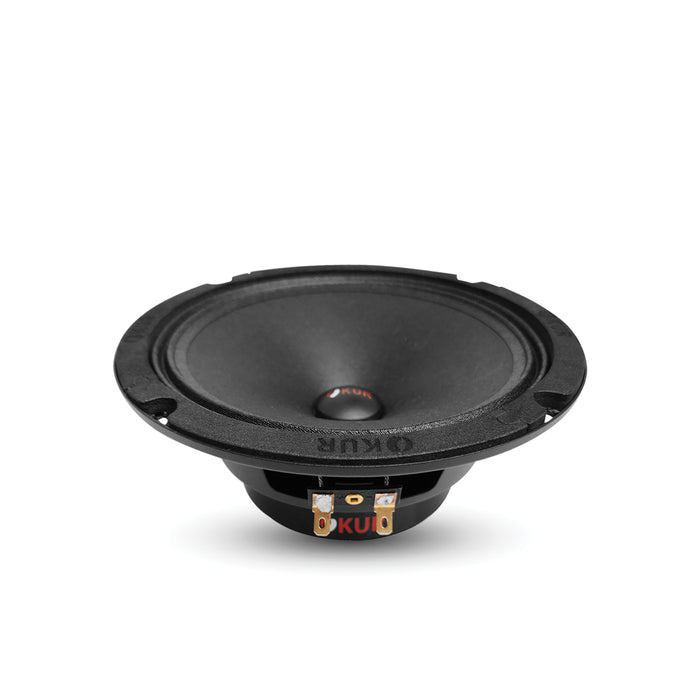

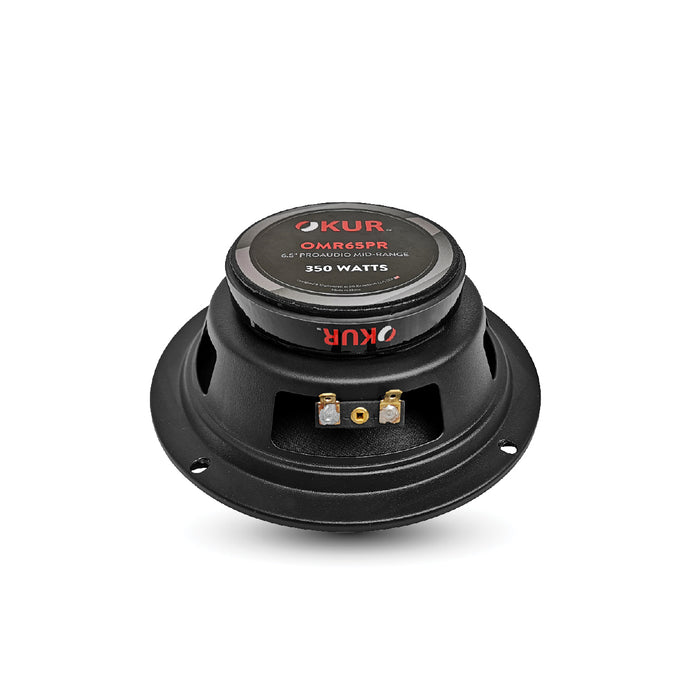

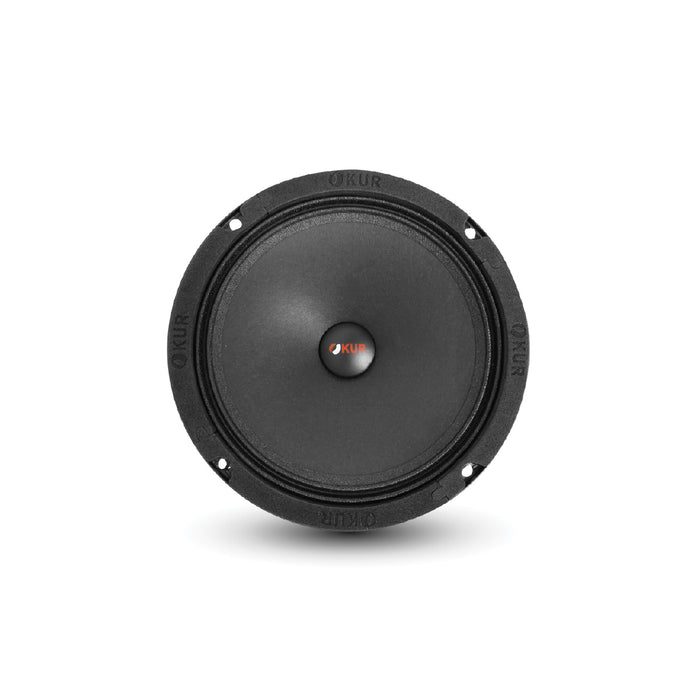

OKUR (OMR65PR) PAIR - 6.5″ PRO AUDIO MID-RANGE HIGH OUTPUT
FEATURES:
- CCAW Voice Coil Wire
- KSV Coil
- Ferrite Magnet
- Stamped Steel Basket
- Paper Cone
- Cloth Cone Edge
T/S PARAMETERS:
- Resonant Frequency (fs) : 118.4Hz*
- D.C. Voice Coil Resistance (Re) : 3.0
- Mechanical Quality Factor (Qms) : 5.78
- Electrical Quality Factor (Qes) : 1.27
- Total Quality Factor (Qts) : 1.04
- Compliance Equivalent Volume (Vas) : 6.7L
- BL Product (BL) : 3.8
- Diaphragm Mass inc. Airload (Mms) : 8.0 gr
ADDITIONAL SPECS:
- Basket Diameter : 6.5″ (162.56mm)
- Max Power : 350 Watts
- Nominal Power : 75 Watts
- Impedance : 4 Ω
- Resonance : 118.4Hz
- Sensitivity : 96.3

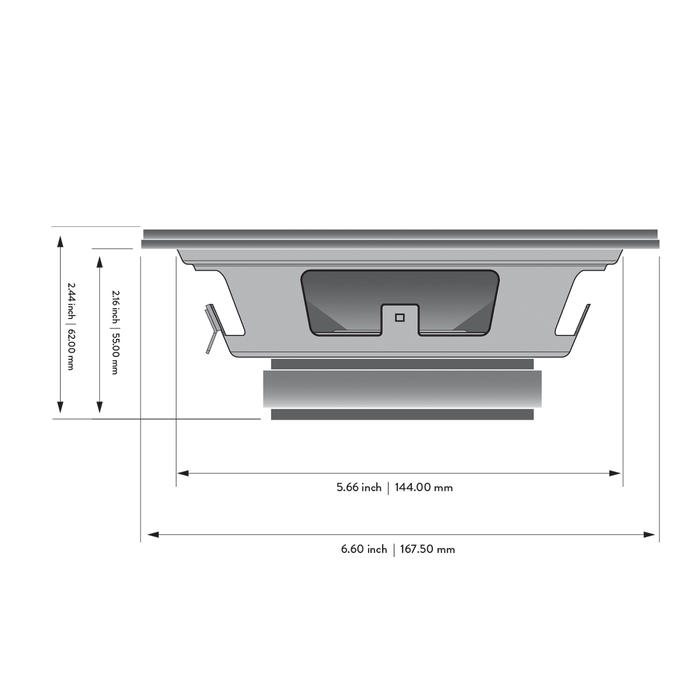

MOUNTING INFORMATION:
- Overall Diameter : 6.60″ (167.5mm)
- Cutout Diameter : 5.66″ (144mm)
- Mounting Depth : 2.16″ (55mm)
