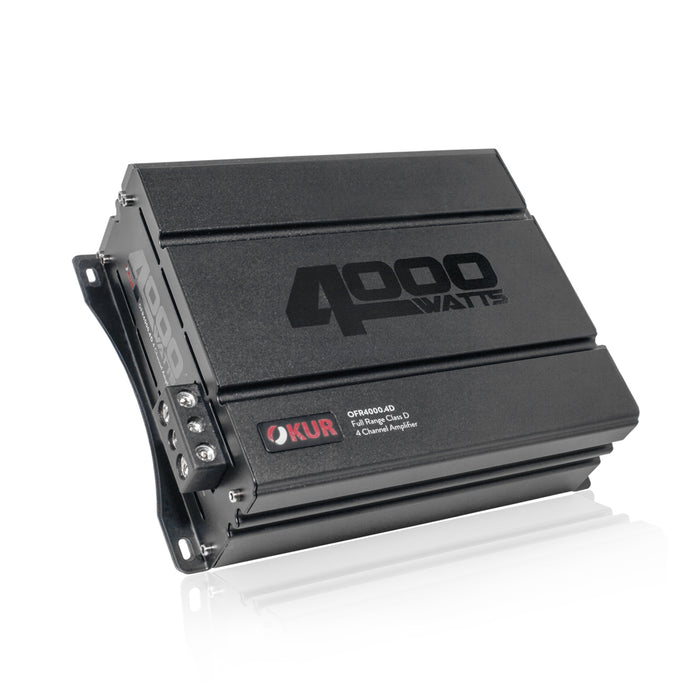

OFR4000.4D
by OKUR
OKUR (OFR4000.4D) FULL RANGE CLASS D 4 CHANNEL BASS REMOTE INCLUDED MONOBLOCK AMPLIFIER @1Ω
ABOUT THIS ITEM
- Full Range Class D
- Monoblock Circuitry
- 1Ω Load Mono Capability
- Low level RCA inputs
- Variable HP/LP/BP Crossover
- High Efficiency Mosfet Design
- Heat Management System
- Remote Dash Bass ControlV
PARAMETERS:
- Bandwidth(-3dB) : 18Hz – 22KHz
- S/N Ratio : < 90 dB
- Input Sensitivity : 285Mv – 6V
- Minimum Load Impedance : 1Ohm Stereo
- Input : Pre in RCA
- Crossover Fire Slope in Stereo : 12dB
- Channel 1-2 HPF range : 15Hz-6KHz
- Channel 1-2 LPF range : 15Hz-6KHz
- Channel 3-4 HPF range : 15Hz-6KHz
- Channel 3-4 LPF range : 50Hz-6KHz
GENERAL SPECIFICATIONS:
- Rated Power @ 14.4 Volts
- 4 x 500 Watts @ 4Ω
- 4 x 1000 Watts @ 1Ω
- 2 x 2000 Watts @ 2Ω Bridged
DIMENSIONS:
- Length (A) : 8.97″ / (228mm.)
- Width (B) 6.29″ / (166mm.)
- Height (C) 2.61″ / (66.50mm.)
