OA1200.2
by OKUR

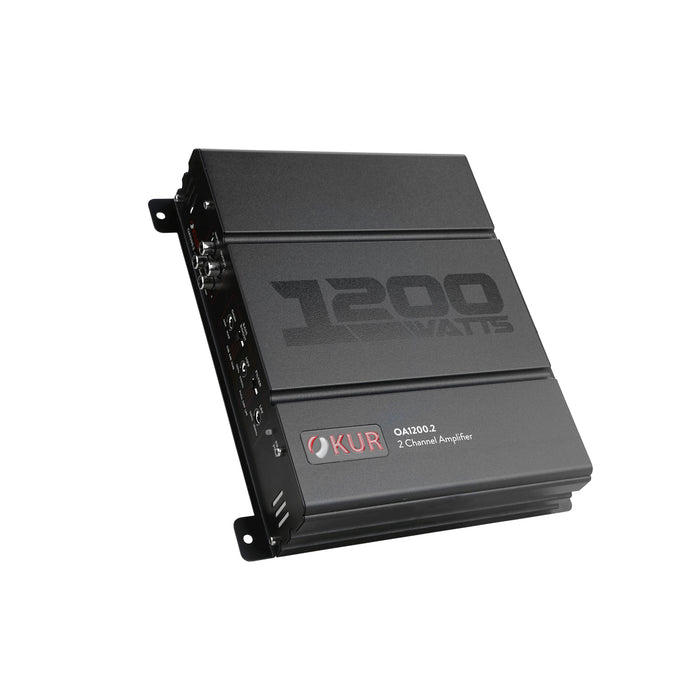

OKUR (OA1200.2) 2 CHANNEL CLASS A/BCIRCUITRY 1200 WATTS AMPLIFIER
ABOUT THIS ITEM
- 2 Channel Class A/B Circuitry
- 2 Ω Stereo load Capability
- Low level RCA inputs
- Selectable Crossover: HPF/LPF
- Bridgeable outputs @ 4Ω load
- 4 gauge Power cable input connectors
- Compatible with any 4/2Ω Loudspeaker
- High Efficiency Mosfet Design
- Heat Management System
PARAMETERS:
- Bandwidth(-3dB) : 18Hz – 22KHz
- S/N Ratio : < 90 dB
- Input Sensitivity : 285Mv – 6V
- HPF range : 50Hz-250Hz
- LPF range : 50Hz-250Hz
- Selectable Bass boost : @45Hz – 0-18dB
GENERAL SPECIFICATIONS:
- Rated Power @ 14.4 Volts
- 2 x 120 Watts @ 4Ω
- 2 x 240 Watts @ 2Ω
- 1 x 480 Watts @ 4Ω Bridged
DIMENSIONS:
- Length (A) : 7.04″ / (275mm)
- Width (B) : 9.33″ / 237.38mm)
- Height (C) : 2.04″ / (51.81mm)
