MTX RZR-14-THUNDER3

MTX

3-Speaker Audio System for 2014+ Polaris RZR Vehicles

The RZR-14-THUNDER3 audio kit is a complete plug and play 3-speaker audio system designed for the Polaris RZR platform. This kit fits all models that DO NOT have an installed RideCommand system*,**. The heart of this system is the MTX AWMC3 media receiver that mounts in the lower center pocket using the included custom dash kit. The package includes a set of the RZR-14-FS front speaker pods designed to install in a matter of minutes and feature integrated RGB lighting and the RZR-14-SW subwoofer enclosure. Connections are made via integrated quick connect harnesses designed for use with the included MUD100.4 4-channel amplifier and a MUD600-1 monoblock amplifier. *Not Compatible with Pro XP/ Pro R Model RZR’s or existing factory audio systems. **RZR model must have dash dry box, Polaris part number 5439789-070, for dash mount kit to work

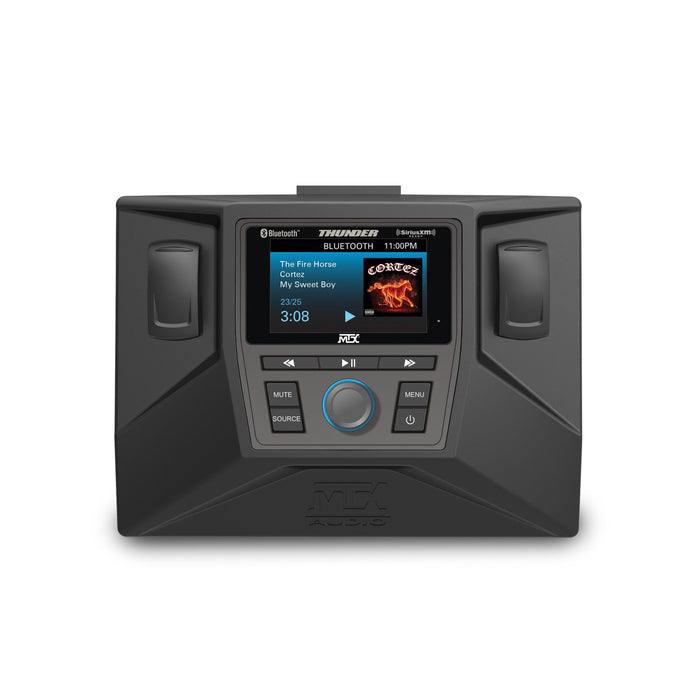

AWMC3* KEY FEATURES

• 3" Full Color TFT Display
• SiriusXM Radio Ready**
• AM / FM / WB Tuner
• Bluetooth Audio Streaming
• Internal Power Amplifier
• Weather Resistant (IP66)
• 2 Sets of Preouts (Front / Rear)
• Selectable EQ
• Backlit Control Buttons
• **SiriusXM antenna/receiver and external AM/FM antenna not included.

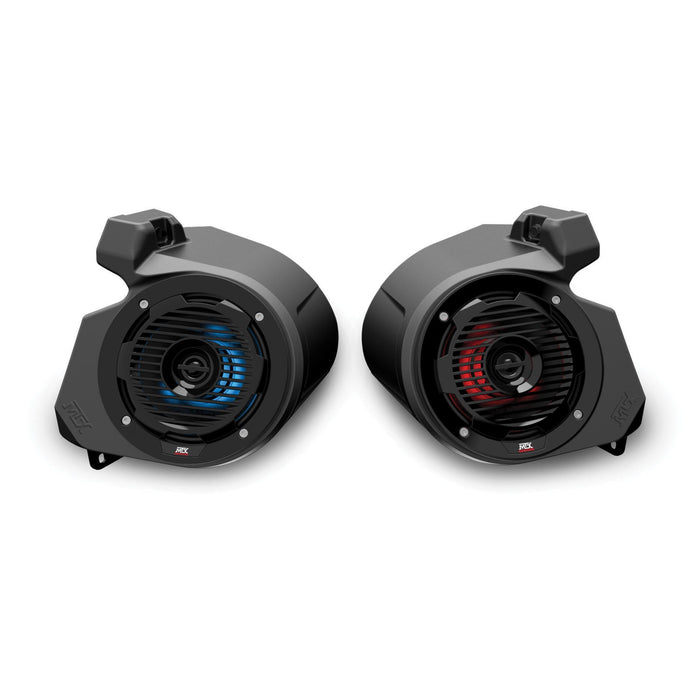

RZR-14-FS KEY FEATURES

• All-Weather Construction with UV Inhibitor
• Custom Fit for RZR Kick Panel
• No Cutting or Drilling Required
• 6.5" Coaxial Speaker
• 50-Watt RMS Power
• Integrated RGB Lighting
• Custom Quick Mount Bracket with POD-LOC Technology for Easy Installation

MUD100-4 KEY FEATURES

• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 400-Watts RMS Power

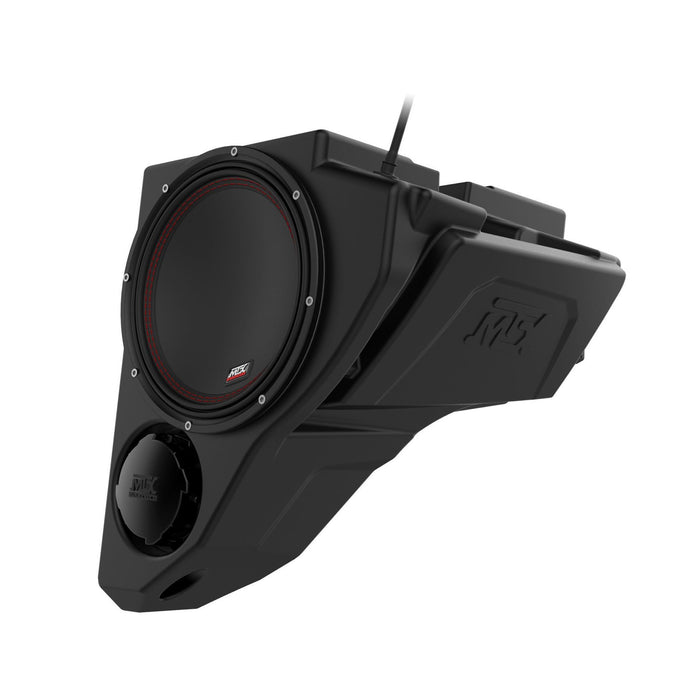

RZR-14-SW KEY FEATURES

• 10" Custom Fit Subwoofer Enclosure
• 400-Watt RMS Power
• Sealed or Ported Functionality
• QuIPS (Quick Install Port Seal) Technology
• Mounts Behind Dashboard on Select RZR Models

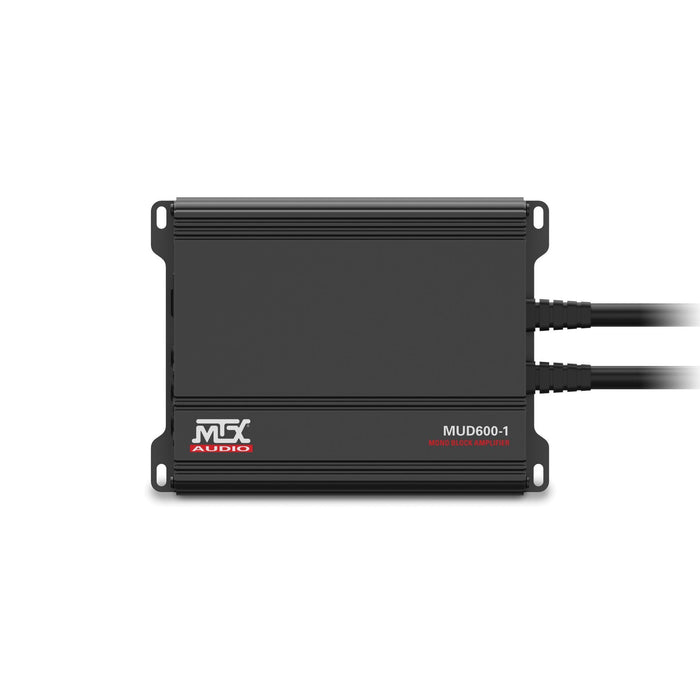

MUD600-1 KEY FEATURES

• High Efficiency Class D Topology
• Compact Design Enables Installation Anywhere
• Conformal Coated Printed Circuit Board that Resists Moisture
• Fixed Crossovers
• High and Low Level Inputs
• 600-Watts RMS Power

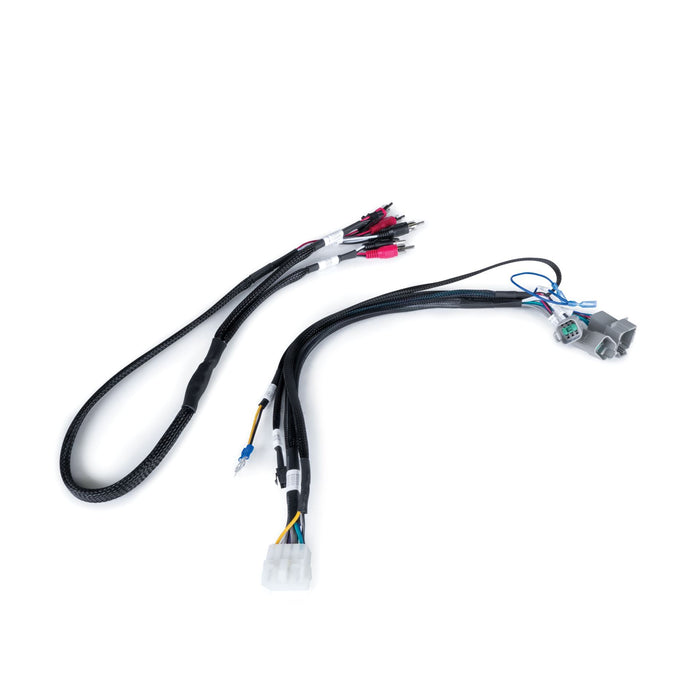

PLUG AND PLAY CONNECTIONS

The RZR-14-THUNDER3 includes all the wiring required to connect each component. All wiring is ruggedly designed to endure the harsh environments RZRs often find themselves in. All wires are terminated with the appropriate plug for the component being connected, making installation easy.
