MBZMOD1
by AIS
AIS (MBZMOD1) CAMERA INTERFACE
REQUIREMENTS
- MUST have the 4.5 Audio System

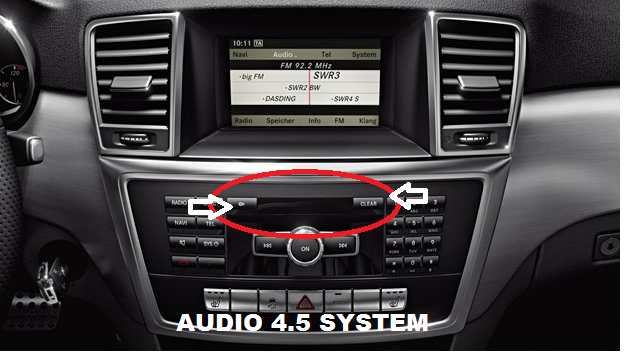

Pictured below is an example on the Audio 4.5 System. Notice the space between the eject and clear button. This is a quick indicator that it is an Audio 4.5 System. This indicator however does not work for the 2014 CLA.
2014 CLA ONLY
Picture below is a 2014 CLA with the 4.5 Audio System.

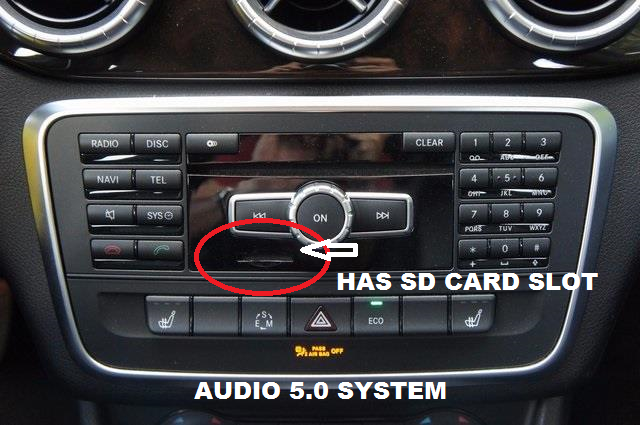

Pictured below is a 2014 CLA with the 5.0 Audio System. The MBZMOD1 WILL NOT work. Requires the MBZMOD2.
FEATURES:
- Rear camera input.
- Dynamic Guide Lines.
- Front camera input.
- Front camera input can also be used as an Auxiliary Video Input.
- +12 volt power out puts for cameras.
- Automatic switching to rear-view camera input when in reverse.
- Forced rear-view camera option.
- Module only.
- Plug & Play installation.
VEHICLE FITMENST:
- MERCEDES
- 2013 – 2015 A-Class (W176)
- 2013 – 2016 B-Class (W246)
- 2013 - 2014 CLA 250 (late 2014)
- 2012 – 2014 C-Class (W204)
- 2012 – 2016 C-Class (C204)
- 2012 – 2016 CLS (C218)
- 2012 – 2016 E-Class (W212)
- 2012 – 2016 E-Class (C207)
- 2013 - 2016 G Wagon (G463)
- 2013 - 2016 GL (X166)
- 2014 – 2016 GLA (X156)
- 2011 – 2016 GLK (W204)
- 2012 – 2016 ML (W166)
- 2012 – 2016 SLK (R172)
- 2013 – 2016 SL (R231)
