HYP1504
by HYPNOTIC

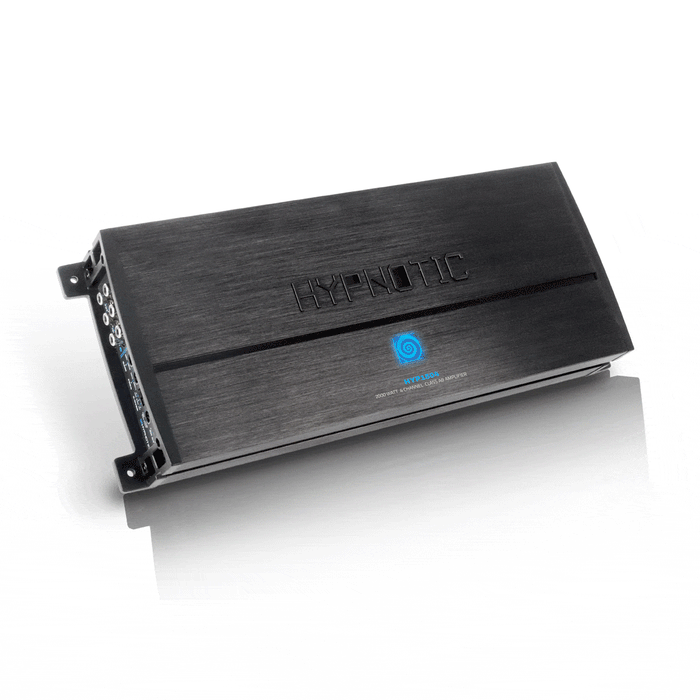

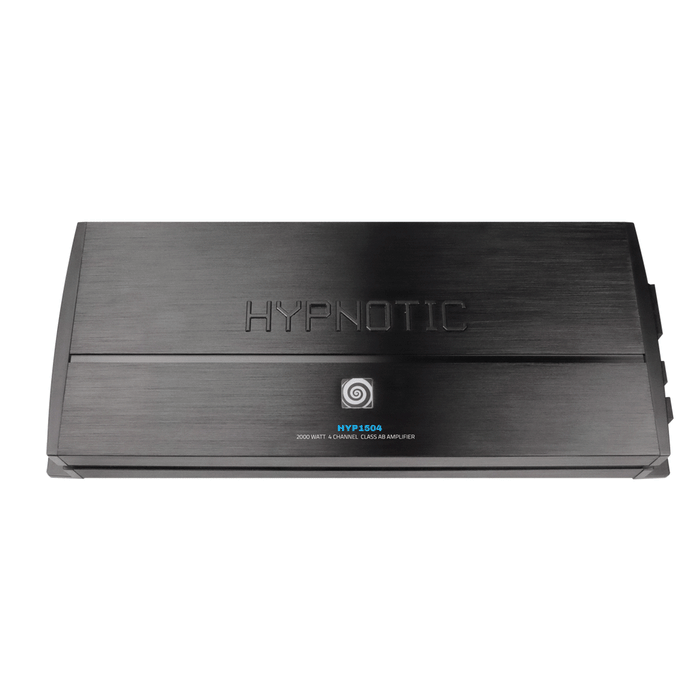

HYPNOTIC (HYP1504) 2000 WATTS 4 CHANNEL CLASS AB 2 OHM AMPLIFIER
The HYPNOTIC™ HYP1004, HYP1254, HYP1504, HYP3400.4 & HYP1252 are equipped with a built in variable crossover network allowing you to select the crossover function and frequency for each the front channels or rear channels of the amplifier independently.
FEATURES:
- Class AB circuitry
- 2 ohm load stereo capability
- Audiophile grade components
- Variable high pass and low pass x-over
- Buffered RCA line out
- High efficiency mosfet design
- Heat management System
GENERAL SPECIFICATIONS:
- Dynamic Power Handling : 4 x 150 Watts @ 4 Ω
- Dynamic Power Handling : 4 x 300 Watts @ 2 Ω
- Bridged : 2 X 600 Watts @ 4 Ω
PARAMETERS:
- Ch 1-2 High Pass Crossover : 50Hz – 500Hz
- Ch 1-2 Low Pass Crossover : 50Hz – 500Hz
- X-Over Slope : 12 dB
- Signal to noise ratio : >90dB
- Bass Boost @ 45Hz : 0-6dB – 12dB
- Input Sensitivity : 285mV ~ 6V
DIMENSIONS:
- Length (A) : 13.77″ / (350mm)
- Width (B) : 6.10″ / (155mm)
- Height (C) : 2.20″ / (55.99mm)
