HYP1200D
by HYPNOTIC

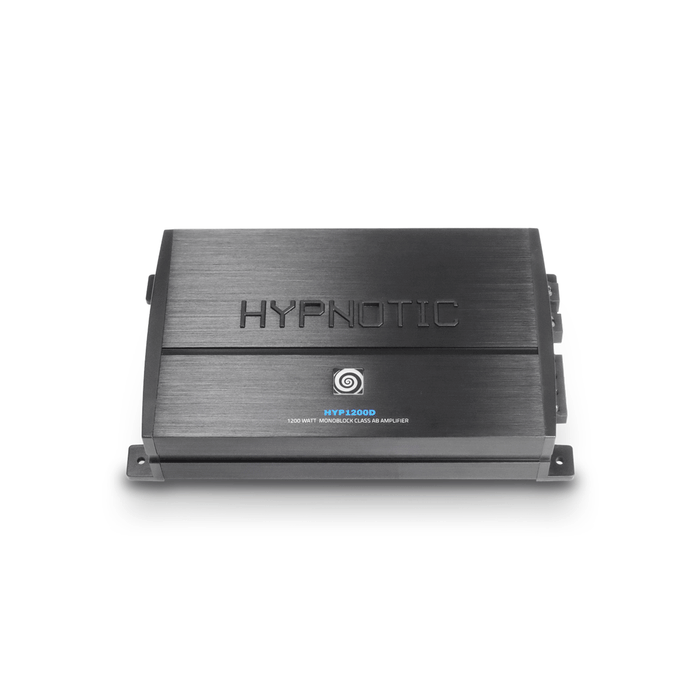

HYPNOTIC (HYP1200D) 1200 WATTS MONOBLOCK CLASS AB 2 OHM AMPLIFIER
The HYP1200D, HYP1600D, HYP2800D and HYP3600D are equipped with a variable 12db slope Lowpass crossover network and a variable subsonic filter. The mono amps also feature a variable Bass Boost EQ is set at 45Hz.
FEATURES:
- Class AB Mono Block Amplifier
- 2 Ohm Stable Capability
- PWM Mosfet power supply
- RCA line level Stereo inputs
- 12dB / Variable Low Pass Crossover
- Variable Subsonic Filter
- Selectable Bass Boost @ 45 Hz
- Thermal Protection Circuitry
- Wired Remote Bass Control Included
GENERAL SPECIFICATIONS:
- Rated Power @ 14.4 Volts
- Dynamic Power Handling : 1 x 1200 Watts @ 1 Ω
- Nominal Power Handling : 1 x 600 Watts @ 2 Ω
PARAMETERS:
- Frequency Response : 10Hz – 250Hz
- S/N Ratio : < 90 dB
- Low Pass Crossover : 50Hz – 220Hz
- Subsonic Filter : 0 ~ 50Hz
- Bass Boost @ 45Hz : 0-6dB – 12dB
- Input Sensitivity : 200mV ~ 6V
DIMENSIONS:
- Length (A) : 9.05″ / (230mm)
- Width (B) : 6.10″ / (155mm)
- Height (C) : 2.20″ / (55.99mm)
