EXBE2
by EUPHORIA

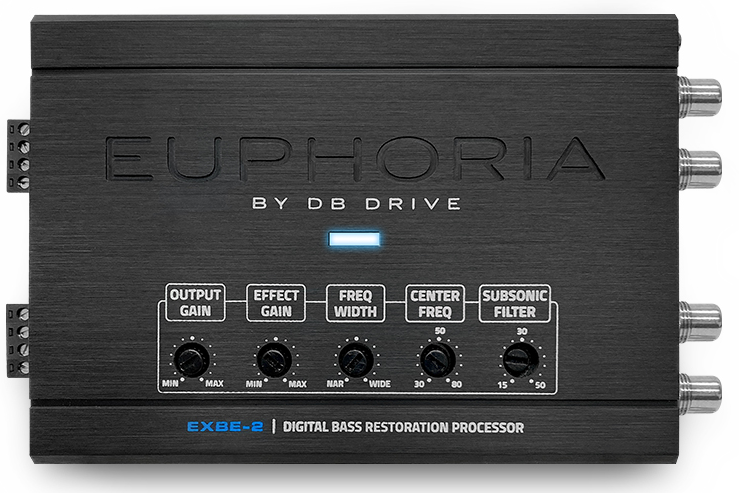

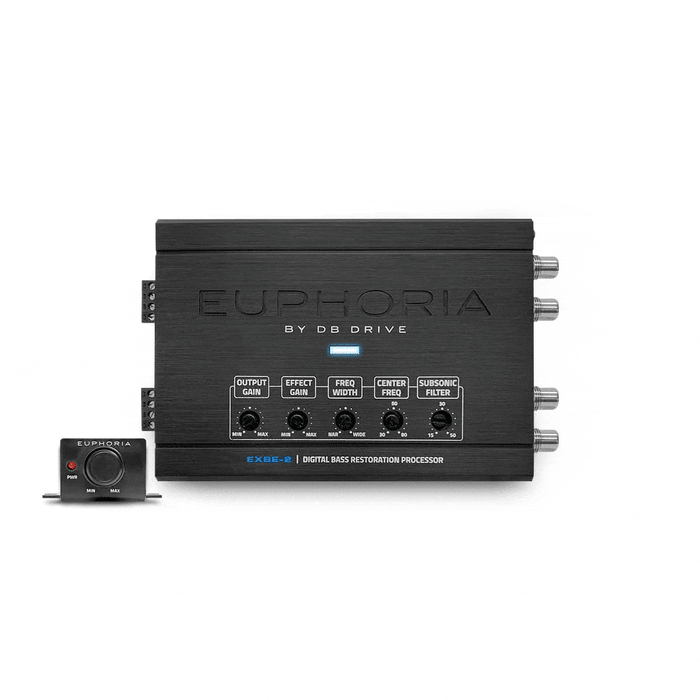

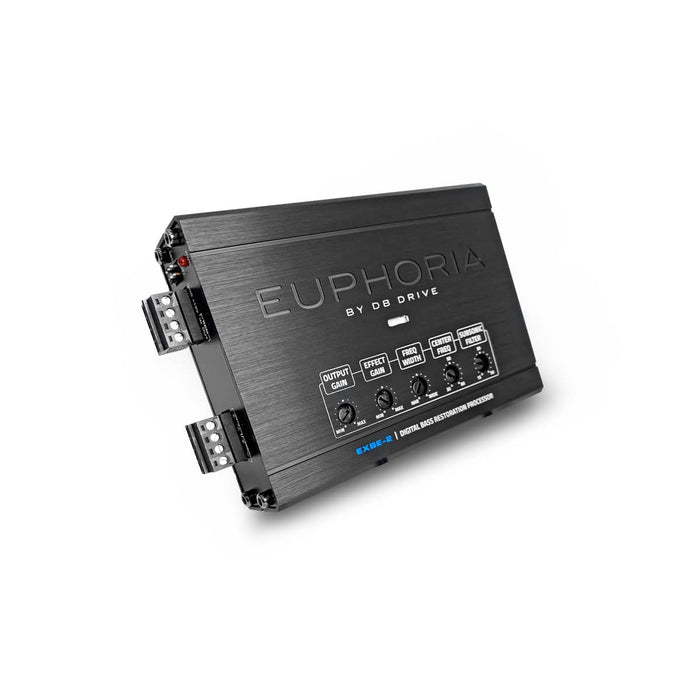

EUPHORIA (EXBE2) DIGITAL BASS RESTORATION PROCESSOR
FEATURES:
- Factory Radio Speaker Hi-level inputs
- Balanced Inputs RCA Low Level inputs
- Intergraded Line Driver output
- Variable Subsonic Filter
- Variable Gain Adjustment with Clip LED Indicator
- Auto Turn-On Audio Signal Detect
- +12V Remote Output (for factory radio integration)
- Selectable Ground Isolation
- Removable Power/Speaker Terminals
- Audiophile Tiffany RCA inputs

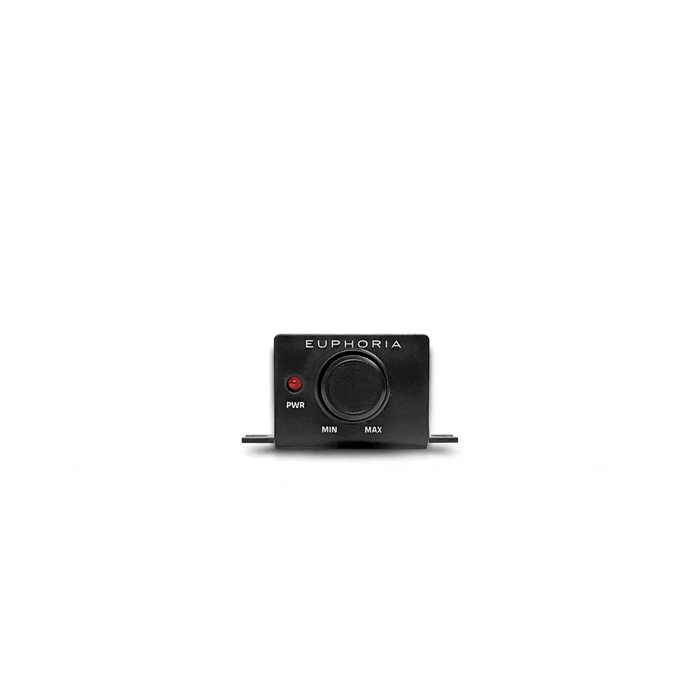

- Includes Remote Level Control with effect defeat
SPECIFICATIONS:
- Input Sensitivity:
- Hi-Level: 2-20Vs – 4-40V (internally selectable)
- RCA: 0.5-5V- 1-10V (internally selectable)
- Maximum Hi-Level ?Input Voltage: 40Vrms
- Frequency Response: 15Hz to >25KHz
- THD+N (SPK/RCA): <0.05% / <0.1%
- Maximum Output Voltage : 10Vrms
BASS RESTORATION:
- Effect Gain: 0-18dB
- Width: Nar-Wide
- Freq: 30-80Hz
- Variable Subsonic Filter: 15hz – 50Hz
- +12V Remote Output: 15Hz – 50Hz
