CAR-723W
by JENSEN
Product highlights:
General features:
- digital multimedia receiver with AM/FM tuner (does not play discs)
- 7" capacitive touchscreen display
- fits double-DIN dash openings
- Bluetooth for hands-free calling and audio streaming
Smartphone features:

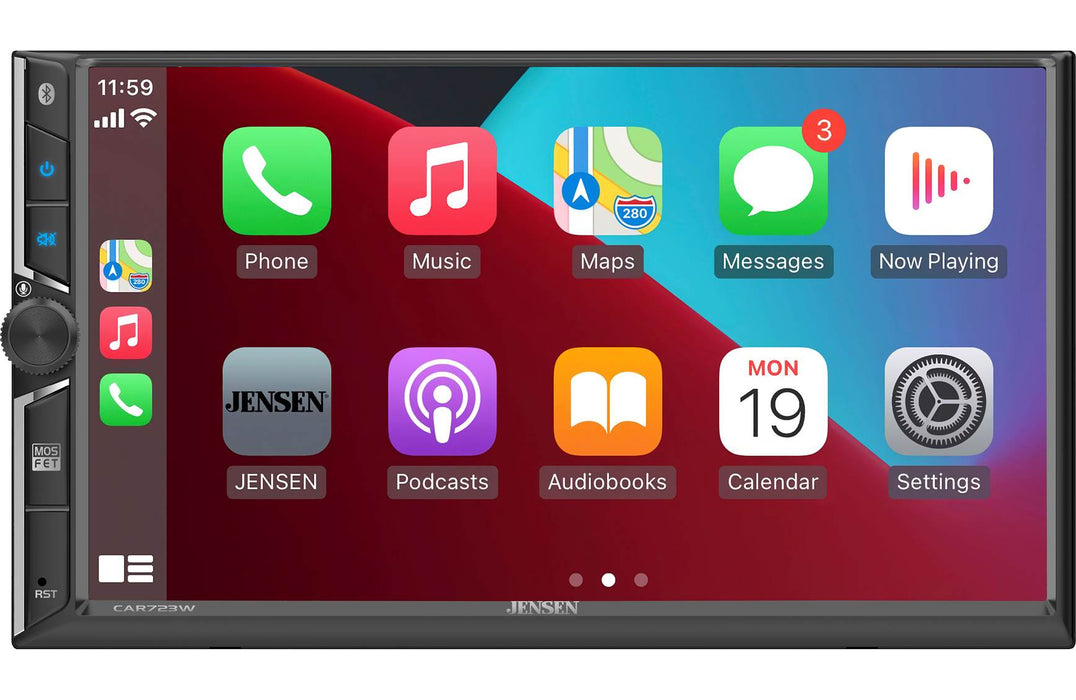

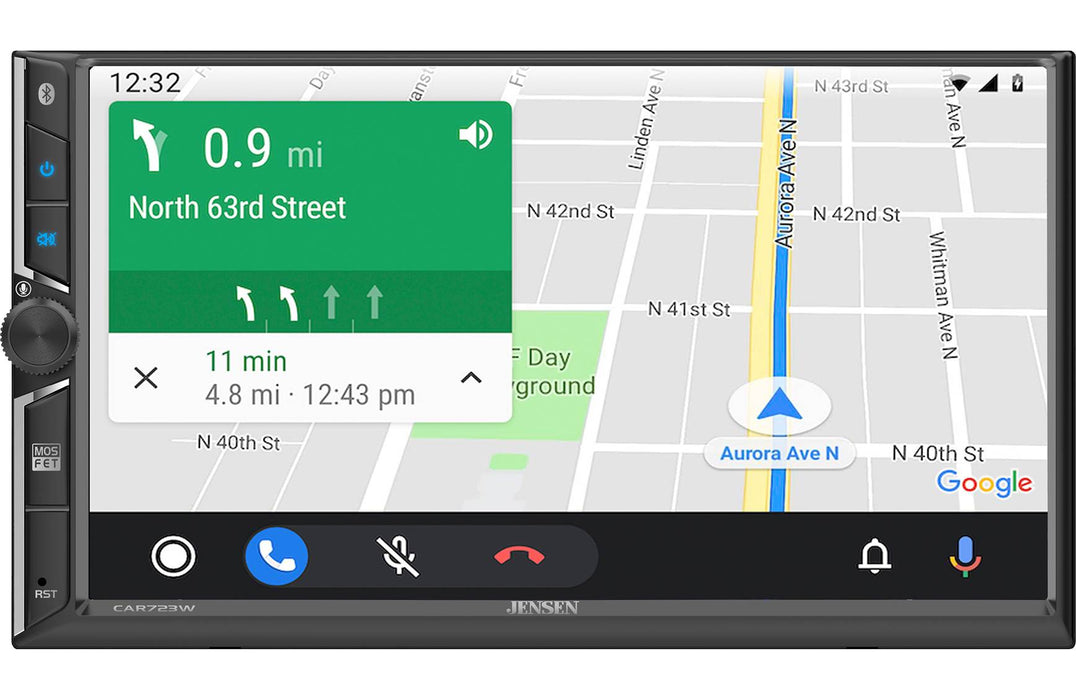

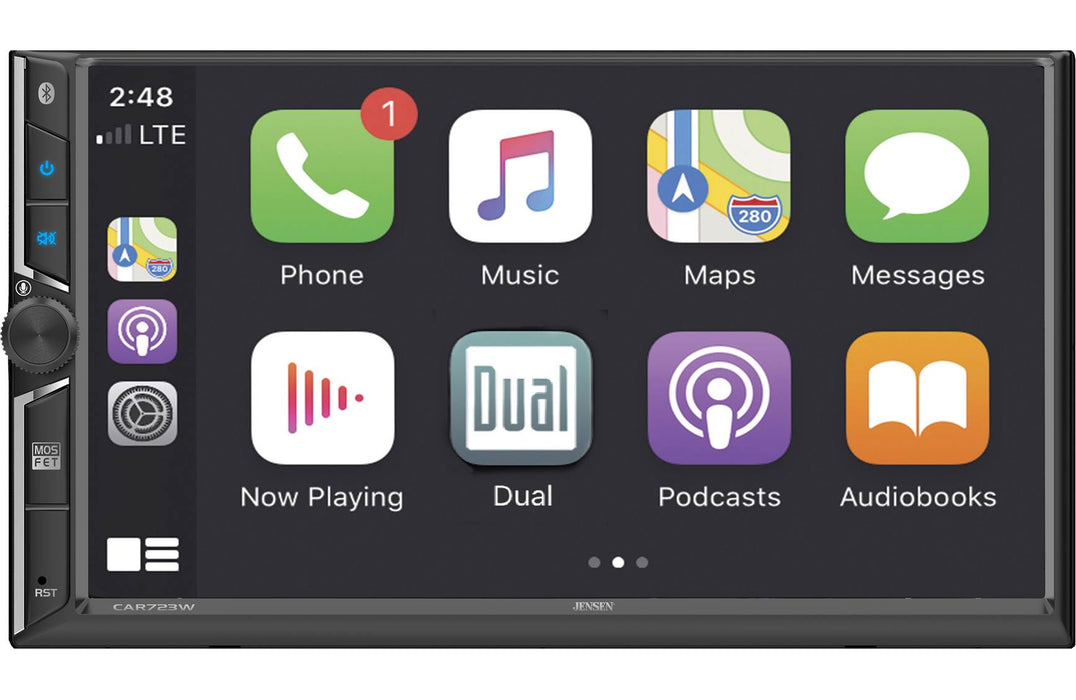

- wireless or wired Apple CarPlay and Android Auto compatible
- push-to-talk button for smartphone assistants
Audio/video features:
- FLAC/MP3 file playback via USB
- 10-band EQ with 7 preset EQ curves
Expandability:
- inputs: 2 rear USB inputs, rear A/V input (RCA), front and rear camera inputs
- outputs: 6-channel preamp outputs (4-volt front, rear, sub)
Other information:
- wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
- built-in internal amp (16 watts RMS CTA-2006/60 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- CTA-2006 compliant

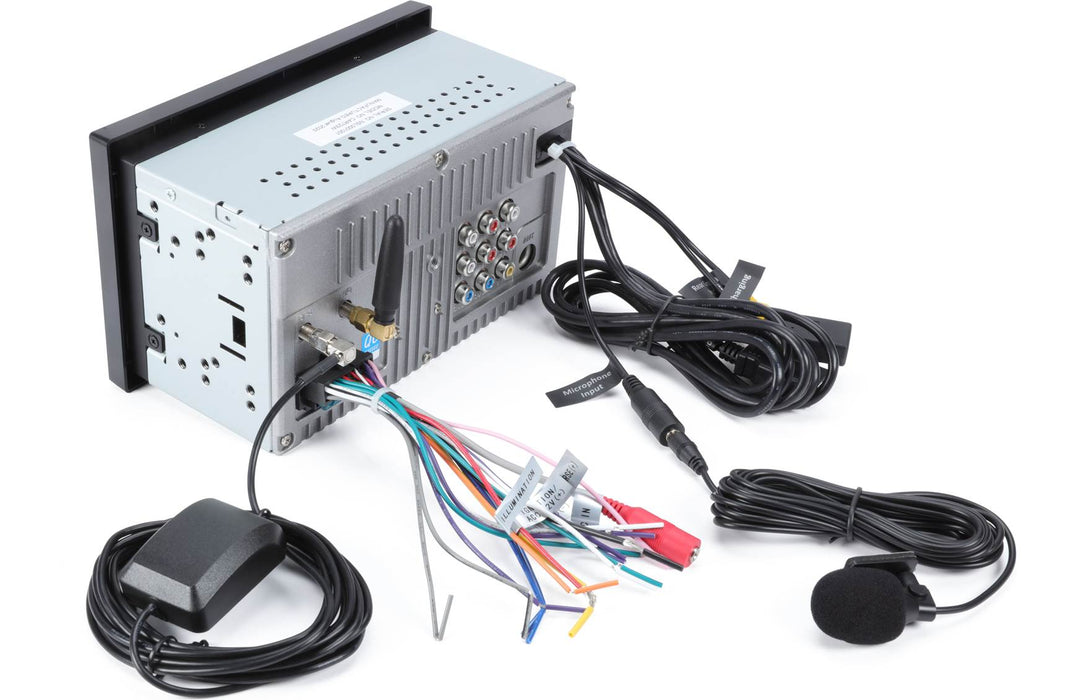

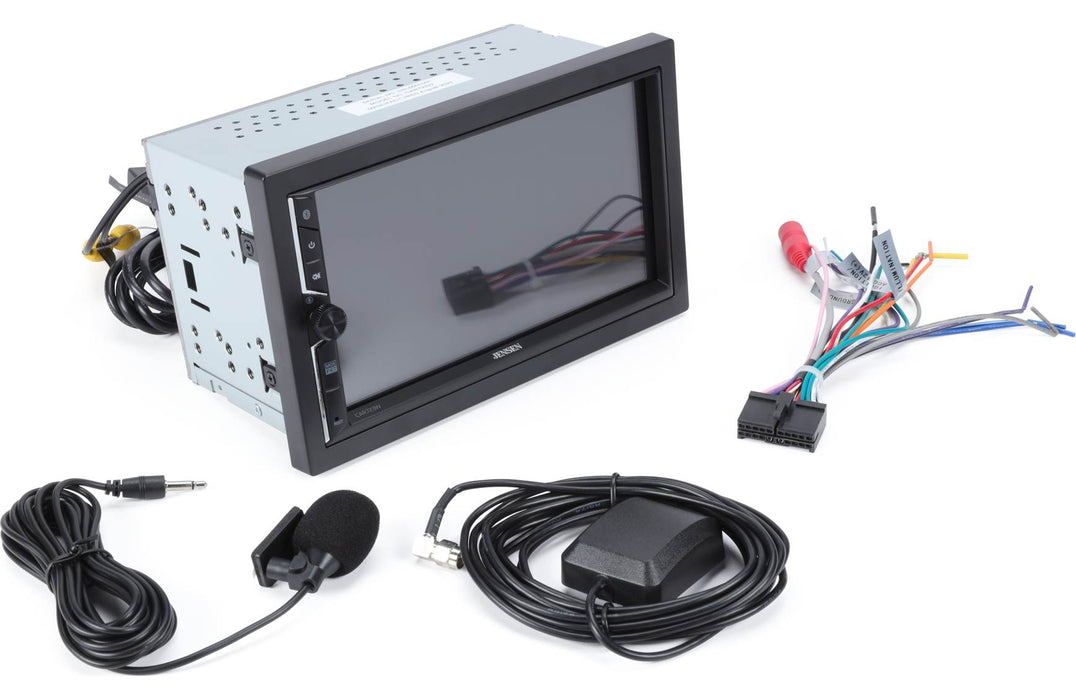

What's in the box:
- Manual
- Digital multimedia receiver (15A fuse)
- Trim-ring (pre-installed)
- WiFi antenna
- Wiring harness
- GPS antenna (attached 9.75' cable terminated by SMB connector)
- Microphone w/ bracket (attached 9.75' cable terminated by a mono-3.5mm connector
- Self-adhesive GPS antenna pad
- 8 Pan-head ISO-screws
- 8 Counter-sunk ISO-screws
- Quick Start Guide
- Warranty/Registration card
